MARINA Port Vell, PV self-consumption with batteries



Power 18,75 kWp; 15 kW. Surface of catchment 112m2. 69 polycrystalline modules of 250 Wp. Production 22,5 MWh/year. Emissions reduction of CO2 7.875 kg/year.

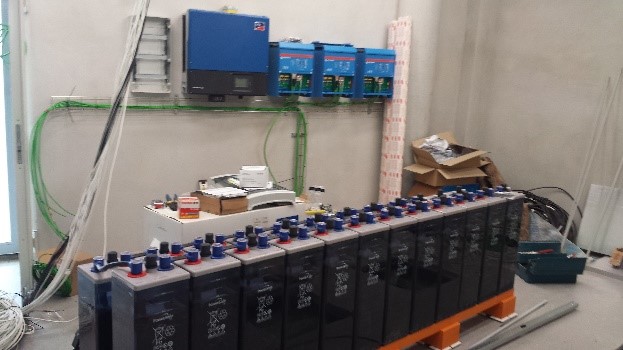

Present the photovoltaic installation for self-consumption of 18,75 kWp of class A polycrystalline modules, and a nominal power of 15 kW with first-class inverters and lead-acid batteries of 1.200 Ah C100, for the direct supply to the ventilation system of the building, which we have installed in the Marina del Port Vell, Barcelona.

The installation has been made in a coplanar manner on a flat roof; It consists of 69 polycrystalline PV modules and will allow an annual production of 22,5 Mwh / year, with significant economic savings, as well as reducing CO2 emissions to the atmosphere of 7,8 tons per year.

Satisfied of having collaborated in 2014 with La Marina del Port Vell, from the preliminary phases, design, development of the project, installation, construction management, homologation and connection of its self-consumption photovoltaic plant.




MARINA Port Vell, PV self-consumption with batteries MARINA Port Vell, PV self-consumption with batteries MARINA Port Vell, PV self-consumption with batteries MARINA Port Vell, PV self-consumption with batteries
